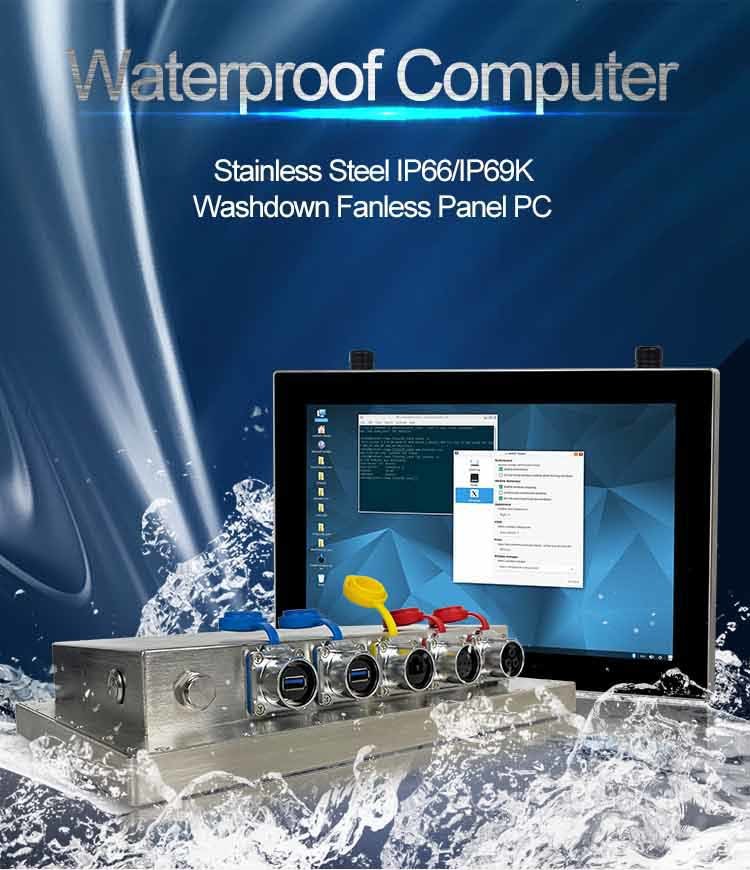

Stainless steel touch screen panel pc fully enclosed in IP69K with 12 inch display
Feature
The waterproof system is cleaned by pressure water frequently. Its fanless, noiseless design and IP66/IP69K waterproof housing enable the system to work more efficiently and reliably, preventing the dust, dirt, water, oil and chemicals. It can prevent bacterial growth and rust accumulation caused by long-term use.
The WPC waterproof series of multi-touch industrial panel PCs developed by QYT plays an important role in it. It’s with excellent display performance, easy operation, rich IO functions, and can handle weighing, labeling, packaging, processing inspection and batch number management to improve efficiency and traceability.
1. 12" TFT LED with capacitive touch
2. Intel Celeron Dual Core 3855U 1.6GHz

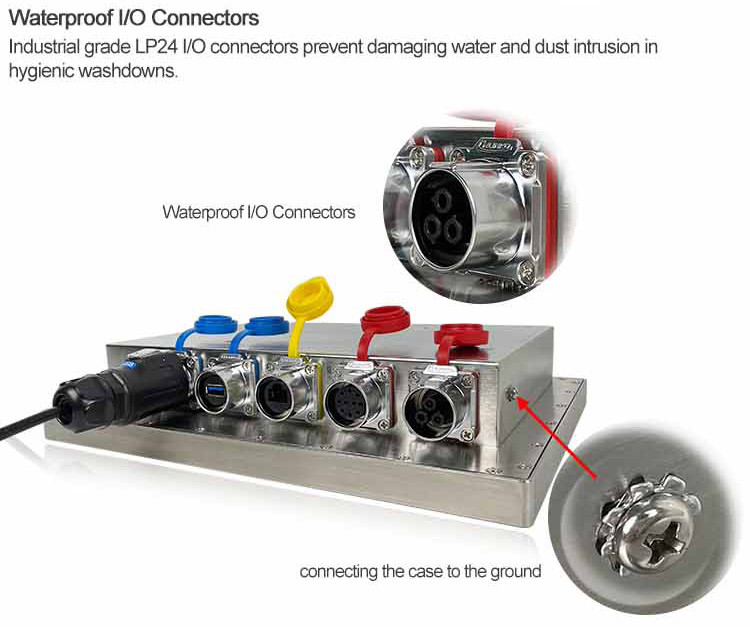

3. LP-24 I/O Industrial connectors: VGA/LAN/USB/COM/RS232/RS485
4. Full system IP66/IP69K with Stainless Steel SUS304 construction
5. DC12V~24V Input (+9V～36V wide voltage optional)
6. Fully sealed and fanless design, full IP69K waterproof, Sealed I/O with cable set included.
| WPC-M012WCC |
| System | CPU | Intel Celeron Dual Core 3855U 1.6GHz |
| L2 Cache | 2MB |
| Chipsets | Intel Skylake-U SOC |
| Memory | DDR4L 2133MHz 4GB, Up to 16GB |
| Harddisk | 1 x mSATA 32G SSD / (64G / 128G / 250G / 500G SSD) Optional |
| Graphics | Intel HD Graphics 510 |
| Network | Intel® i211 1000 Mbps port |
| Audio | Realtek ACL662 Audio controller |
| Operation System | Windows7 / 8 / 10, Linux, Unix, QNX |
| I / O | VGA | 1 x VGA / 1 x HD-MI ( Optional ) |
| LAN | 2 x LAN ( Optional ) |
| USB | 4 x USB ( Optional ) |
| COM | 2 x RS232 ( Optional ) |
| Wireless Network | WiFi + Bluetooth ( Optional ) |
| Other I/O Interface | 1 x Power Switch |
| LCD Panel | Panel Size | 12.1" Led |
| Resolution | 1280 x 800 |
| Aspect Ratio | 16:10 |
| Display Brightness | 450cd/m2 |
| Contrast Ratio | 700:1 |
| Colors | 16.7M , 76% NTSC |
| Response Time | 50000 Hr (min.) |
| Viewing Angle | 80 / 80 / 80 / 60 (CR≥10) ( L / R / U / D ) |
| Touch screen | Touch Screen Type | 10 point capacitive touch |
| Transmittance | >90% |
| Response Time | <5ms |
| Surface Hardness | ≥6H |
| Supply Voltage | 5.0V DC |
| Touch Life | ≧ 3000W |
| Institutional | Material | Stainless Steel SUS304 |
| Color | Polished brushed surface |
| VESA Mounting | VESA: 100 x 100 mm |
| Waterproof Rate | IP66 / IP69K |
| Product Dimension | 312 x 214 x 55 mm |
| Cut-out Size | / |
| Packing Size | 450 x 170 x 350 mm |
| Gross Weight | 7.0 KG |
| Power and Environment | Operating Temperature | -10~60°C |
| Storage Temperature | -20~80°C(-22~176°F) |
| Relative Humidity | 5%~95%@40°C, non-condensing |
| Vibration Range | 5-500 Hz, 0.026 G2/Hz, 2.16 Grms, X, Y, Z, 1 hour per axis |
| External Power Supply | AC 100 - 240V~50/60Hz,1.5A |
| Working Voltage | DC 12V~24V / optional(+9V~36V) |
| Power Consumption | ≦25W |
OEM/ODM
1. size from 7"-24" available
2. Processor--Intel J1900/ I3/I5 .....etc lower consumption board
3. Capacitive touch / Resistive touch or without touch
4. 1000nits, 1500nits high brightness for sunlight readable
5. DC 9V～36V wide voltage input
Our Advantage
1. Experience
QYT has more than 10 years rich experience in Industrial Computer/monitor filed.
2. Wide products line
7''-42'' size widely products line, industrial touch panel, embeded computer, lcd monitor, waterproof computer, sunlight readable pc/monitor, android pc...etc.which have excellent work performane.
3. Customization functions
It offers rich of interface to meet csutomers needs.
4.Widely useage environment
QYT computer/monitor which is widly used for kitchen,food industry, boat...etc
